Description
Product details

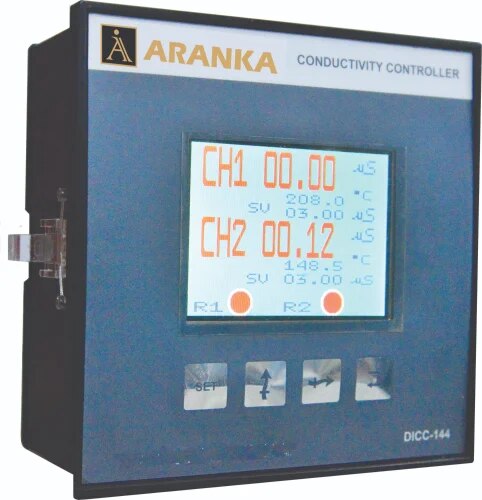

Pole Type Single Pole Throw Type Single Throw Current 5 A Power 220~240VAC , 50HZ Input Channel 2 NOS. Cell Constant 1k Body Material ABS Outer Dimensions 96x96x110mm Cut Out Dimensions 92x92mm Conductivity Range 0~10uS Conductivity Resolution 0~0.01uS Conductivity Accuracy + 0.1uS Conductivity Digital Output 5A, 1CO, Relay Dual Channel Conductivity Controller is used For Special Application of WFI System to Control WFI Plant Water output. Dual Channel Conductivity Controller is use for dual measurement analyzer to Monitor Dual Data at single screen. it also gives individual Relay output & analog 4~20mA output for PLC DATA. Details: Industrial process conductivity controllers are panel instruments for in-process monitoring of conductivity. It is a Dual Channel meter for online measurement of specific Conductivity of solution using a Conductivity cell for WFI or DM plant applications. It enables to measure the Conductivity with high Temperature Compensation up to 180 C. Features: 3.5” Color TFT LCD display Large digits Digital output status on LCD 90% Humidity environment operation capacity 55 C Temperature environment operation capacity On screen calibration High temperature auto compensation up to 150C Temperature display on screen Applications: Process water Drinking and well water Pure, ultra-pure, and pharmaceutical water (e.g. according to USP, Ph. Eur., WFI) Cleaning processes in pharmaceutical applications
