Product details

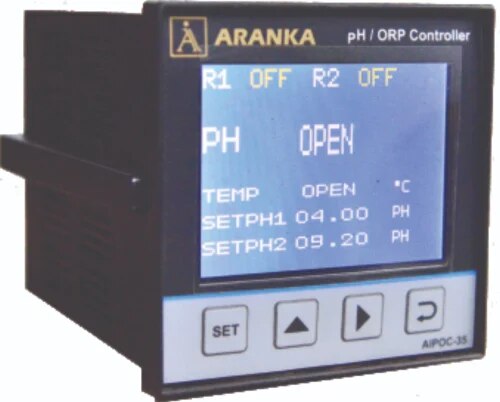

Input Sensor mV FROM Ph Model Name/Number AIPOC35 Usage/Application Industrial Temperature Range 0~130 'c Power 230VAC @ 50Hz Brand ARANKA INSTRUMENTS LLP Phase SINGLE PHASE Current 1 A Throw Type Single Throw Control Type HI LO both Certifications CE Analog Output 4~20mA Case Size 96x96x110 Control Action ON / OFF, DOSING SYSTEM Control Output RELAY Display Accuracy +/- 0.05% OF READING Display Size 3.5" COLOR Relay Output 2 NOS Supply Voltage 90~260 VAC Panel Cutout 92X92mm Storage Temperature 0~35'C Range 0~14pH Accuracy 0.5pH Country of Origin Made in India This new microprocessor-based family of ph, orp and ph/orp panel mounted controller is designed for a wide variety of environmental monitoring applications. The units features automatic or manual temperature compensation of ph, two 5 amp mechanical relays and 4 to 20 ma, controling output. For ease of operation all calibration and parameter setpoints are selectable through the front keypad. specifications power : 220~240vac , 50hz range : 0~14ph resolution : 0. 01ph ph accuracy : + 0. 1 of reading temperature range : 0~200 c temperature resolution : 0. 1c relay output : 5a, 1co analog output : 4~20ma display : color body : abs outer dimensions : 96x96x100mm encloser : panel mount Additional Information: Item Code: DIPOC-35 Delivery Time: 2-3 weeks
