Description
Product details

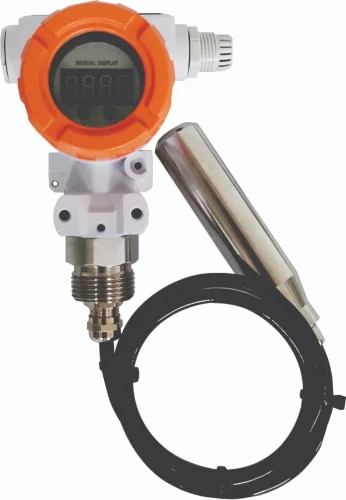

Type Digital Model Name/Number AIHCDB 3022 / 5022 Brand ARANKA INSTRUMENTS LLP Usage/Application UNDER GROUND & TANK WATER LEVEL MEASUREMENT Material Stainless Steel Ambient Temperature -20~80'C Measuring Range CUSTOMIZED Communication Protocol RS485 OPTIONAL Length Unit METERS Isolated Power Supply 24VDC Output Signal 4-20mA Accuracy +/-0.2F.S / +/-0.5 F.S. Flange-Connection OPTIONAL Hygenic-Fittings OPTIONAL Protection-Rating IP67 FOR ENCLOUSER Wetted-Parts S.S.316 Local Display OPTIONAL Country of Origin Made in India The input level gauge is based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid. The pressure sensor is used to convert the pressure signal into an electrical signal, which is converted into a standard current signal or digital signal after temperature compensation and linear calibration. High quality cable with air duct; can be displayed on site; two sensors are available for multiple applications. The imported silicon piezoresistive sensor has high precision and good stability; the ceramic sensor has large hole design, anti-blocking and anti-corrosion; it is directly put into the liquid to be tested, and the installation is simple; Input-type liquid level meter is suitable for urban water supply and sewage treatment, water conservancy and hydropower monitoring and control, marine and marine systems, chemical, medical equipment, industrial on-site liquid level measurement and control, water supply and drainage, environmental protection systems and various industries. Static pressure level measurement of a variety of media. Additional Information: Delivery Time: 5-6 WEEKS
