Description
Product details

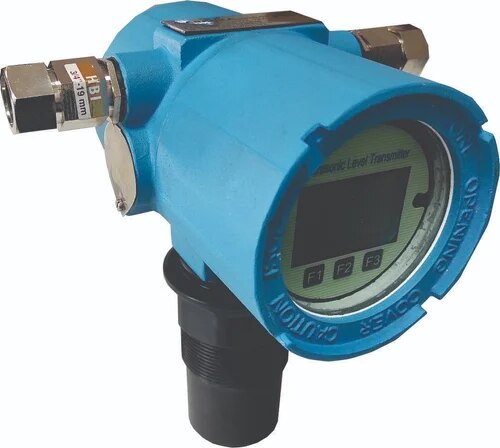

Model Name/Number AIULS Type Digital Usage/Application Industrial Brand ARANKA INSTRUMENTS LLP Material Aluminium Ambient Temperature -40'C TO 70'C Measuring Range 5 METER / 10 METER / 12 METER /15 METER Voltage V 24VDC Output Signal 4-20mA Accuracy + / - 0.5% fsd Flange-Connection Optional Wetted-Parts ABS / PVDF Local Display Optional Storage Temperature -20 ~50'C Dead Band 300 mm Protection Class IP68 Blanking Distance 400mm For 5 & 10 Meter , 500mm For 12 & 15 meter Resolution 1 mm Beam Angle +/ - 5 Degree For For 5 & 10 Meter , + / - 3 Degree For 12 & 15 meter Country of Origin Made in India AIULS Ultrasonic Level System for Liquids is a non-contact system consisting ofan Ultrasonic Transducer integral with Transrecevier. The principle of operation is oftenreffered to as time of flight'. An ultrasonic pulse is emitted from transducer down towards the target and is reflected back from the surface. The time it takes to travel 'from and to' the transducer is directly proportional to distance travelled. The system consists of transmitter with 2 core screened signal cable plus indicator or controller along with protection canopy and mounting accessories. Additional Information: Production Capacity: 100 nos per month Delivery Time: 2-3 WEEKS
