Description
Product details

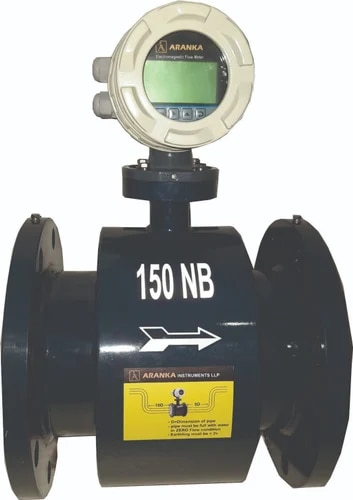

Application Media Any Liquid Accuracy 0.5 FS Power Supply 230 VAC Repeatability 1 Process Temperature 80 Degree C Media Liquids, Chemicals, Diesel, Water Viscosity 200 cp max Line Size Range 15 ~300 mm NB (3/8 inch to 12 inch) Temperature Coefficient 0.1V C Transmitter Enclosure IP 65 Operating Conditions 55 Degree C Body MS, CS, HDPE, PVC max Process Pressure 10 kg/cm2 max Conductivity Minimum 10S/cm Material of Construction of Sensor Hastelloy C, SS 316L Excitation Pulsed DC coil Pipe Lining Rubber, PTFE, Teflon Wetted Parts MS, CS Process Connections Flanged, Sandwich Power Consumption 10 VA Response Time 100 ms Type of Output 4~20 mA DC / Rs485 [optional] To cater the variegated needs of our esteemed customers, we are highly engaged in offering a wide array of Electro Magnetic Flow Meter. Operating Principle: Following Faraday’s law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. In the electromagnetic measuring principle, the following medium is the moving conductor. The voltage induced is proportional to the flow velocity and is supplied to the amplifier by means of two measuring electrodes. The flow volume is calculated by means of the pipe cross section area. Application Area: Waste water industry: Transport networks sewage treatment plants, sludge Chemical industry: Acids alkalis, dosing applications, abrasive or corrosive mediums Metal & mining industry: Mediums with a high solid content like one or excavator mud Water industry: Revenue metering, district metering water abstraction, leakage detection Pulp & paper industry: Pulp, pastes, sludge & other caustic mediums, liquor, additives, bleaches, colorants Food & beverage industry: Mixing, dosing and filling of drinks under hygienic conditions filling systems applications. Features: Full bore type Simple construction Provides wide flow ranges Outstanding accuracy Operates over wide ranges of temperature & pressure Easy maintenance as no moving parts Pulsed DC coil excitation Integral grounding
