Description
Product details

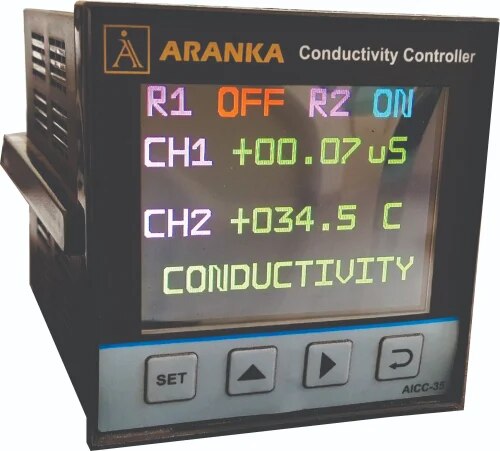

Usage/Application Industrial Brand ARANKA INSTRUMENTS Current 5 A Pole Type Single Pole Throw Type Single Throw Certifications CE Country of Origin Made in India Power 220~240VAC , 50HZ Cell Constant 0.01K/0.1K/1K/10K Display 3.5inch Color LCD Body Material ABS Outer Dimensions 96x96x110mm Cut Out Dimensions 92x92mm Conductivity Range 0~10uS/200uS/2000uS/200mS Conductivity Resolution 0~0.01uS/0.1uS/1uS Conductivity Accuracy + 0.1uS Conductivity Digital Output 5A, 1CO, RELAY Industrial process conductivity controllers is panel instruments for in-process monitoring of conductivity. It is a Single Channel meter for online measurement of specific Conductivity of solution using a Conductivity cell for Raw Water, ETP Plant, WFI or DM plant applications. It enables to measure the Conductivity with high Temperature Compensation up to 180 C. It Generates Re transmits 4~20mA Output to Get Data on PLC. Features 3.5” Color TFT LCD Display Large Digits Digital output status on LCD 90% Humidity Environment Operation Capacity 55 C Temperature Environment Operation Capacity On Screen Calibration High Temperature Auto Compensation up to 150C Temperature Display On Screen Additional Information: Item Code: AICC35
